Features
- Record to SD/SDHC card (Up to 32GB)
- Simultaneously record up to 4 tracks
- Record Modes: MONO, STEREO, DUAL MONO, DUAL STEREO, 4-CHANNEL
- Recording format: 44.1/48/96kHz, 16 or 24-bit, WAV/BWF
- TASCAM HDDA microphone preamps wth 120dB EIN and 64dB of gain
- Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs
- Two combo XLR/TRS inputs support +4dBu mic/line level input
- Phantom power to channels 1/2 (24V or 48VDC on XLRF)
- Plug-in power and high-output mic input supported on inputs 3-4
- CAMERA OUT connector for output from the DR-60DmkII mixer (adjustable gain)
- CAMERA IN connector for sound monitoring from the camera
- Independent adjustable LINE OUT and HEADPHONE jacks for high-quality sound output
- 50mW/ch headphone amplifier
- Tripod mounting socket (bottom) and mounting screw attachment (top)
- Handles protect the screen and can be used to attach a shoulder strap
- Soft-Touch Rubber Keys for silent operation
- HOLD switch to prevent accidental operation
- QUICK button feature for easy access to various functions
- 128x64 pixel LCD with backlight
- USB 2.0 connection for high-speed transferring of files
- Mini USB cable included
- Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power
- Can extend battery life with BP-6AA battery pack (sold separately)
- Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)
- Internal mixer: PAN and LEVEL controls
- Low cut filter (40/80/120Hz)
- Limiter (1/L and 2/R can be selected for linked operation)
- Delay function for microphone distance adjustment (up to 150ms)
- M-S decode functionSlate tone generator (AUTO/MANUAL)
- Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when auto-generated)
- Selectable slate tone generation. (3 positions: OFF/HEAD/HEAD+TAIL, when auto-generated)
- File naming format can be set to use a user-defined word or date
- Dual-recording function allows two files to be recorded simultaneously at different levels
- Auto-record function can automatically start and stop recording at set leve
- lPre-recording function allows the unit to record a 2 second sound buffer before recording is activated
- Self-timer function for solo recording
- New file starts recording automatically without interruption when maximum file size is reached
- Track incrementing function allows a recording to be split by creating a new file when desired
- Jump back and play function
- Equalizer function for playback, and level alignment function to enhance the perceived overall sound pressure
- Resume function to memorize the playback position before the unit is turned off
- MARK function up to 99 points per audio track
- DIVIDE function
DR-60DMKII SPECIFICATIONS
|
Recording media
|
SD card(64MB to 2GB), SDHC card(4GB to 32GB)
|
|
Recording format
|
|
|
WAV
|
44.1/48/96kHz, 16/24bit
|
|
BWF
|
44.1/48/96kHz, 16/24bit
|
|
Number of channels
|
4-channel (stereo x2)
|
|
Analog audio input
|
|
|
1/L, 2/R connectors
|
|
|
Connector
|
XLR-3-31 (1:GND, 2:HOT, 3:COLD)/6.3mm(1/4")TRS standard jack
|
|
Set to "MIC / MIC+PHANTOM"
|
|
|
Input impedance
|
2k ohms
|
|
Phantom power
|
48V +/-4V(10mA/CH) / 24V +/-4V(10mA/CH)
|
|
Maximum input level
|
0dBu
|
|
Minimum input level
|
-72dBu
|
|
MIC input gain
|
TRIM MAX
|
|
LOW
|
+11dB
|
|
MID
|
+36dB
|
|
HIGH
|
+52dB
|
|
HIGH+PLUS
|
+64dB
|
|
Set to “LINE”
|
|
|
Input impedance
|
10k ohms or more
|
|
Standard input level
|
+4dBu
|
|
Maximum input level
|
+24dBu
|
|
3-4 connector
|
|
|
Connector
|
3.5mm (1/8") stereo mini jack (this connector can be supplied plug-in power)
|
|
Input impedance
|
10k ohms
|
|
Maximum input level
|
+10dBV
|
|
Minimum input level
|
-50dBV
|
|
MIC input gain
|
TRIM MAX
|
|
LOW
|
+3dB
|
|
HIGH
|
+26dB
|
|
HI + PLUS
|
+38dB
|
|
CAMERA IN connector
|
|
|
Connector
|
3.5mm (1/8") stereo mini jack
|
|
Input impedance
|
10k ohms
|
|
Standard input level
|
-10dBV
|
|
Maximum input level
|
+6dBV
|
|
Analog audio output
|
|
|
CAMERA OUT connector
|
|
|
Connector
|
3.5mm (1/8") stereo mini jack
|
|
Output impedance
|
200 ohms
|
|
Standard output level
|
-50dBV
|
|
Maximum output level
|
-30dBV
|
|
LINE OUT connector
|
|
|
Connector
|
3.5mm (1/8") stereo mini jack
|
|
Output impedance
|
200 ohms
|
|
Standard output level
|
-10dBV
|
|
Maximum output level
|
+10dBV
|
|

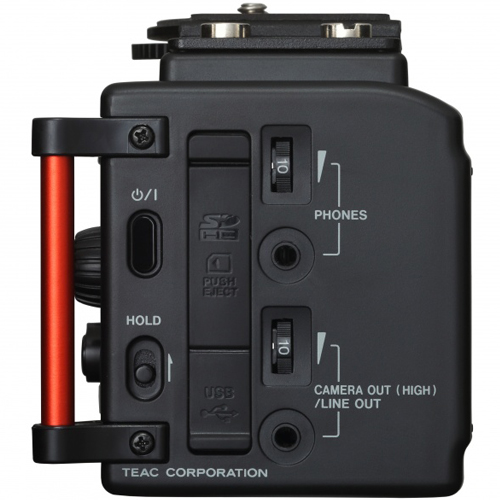

PHONES connector
|
|
|
Connector
|
3.5mm (1/8") stereo mini jack
|
|
Maximum output level
|
50mW + 50mW
|
|
USB
|
|
|
Connector
|
Mini-B type
|
|
Format
|
USB2.0 HIGH SPEED mass storage class
|
|
REMOTE
|
|
|
Connector
|
2.5mm TRS jack
|
|
Power
|
Four AA batteries(Alkaline or NI-MH),
USB bus power,
Dedicated AC adapter(TASCAM PS-P515U, sold separately),
Dedicated external battery pack(TASCAM BP-6AA, sold separately)
|
|
Power consumption
|
5.4W
|
|
Continuous operation time
|
2ch WAV, 44.1kHz, 16bit rec
|
|
DR-60D
|
|
|
Alkaline batteries (EVOLTA)
|
About 2:30 min (Phantom on)
About 4:30 min (Phantom off)
|
|
NI-MH batteries (eneloop)
|
About 3:15 min (Phantom on)
About 5:00 min (Phantom off)
|
|
NI-MH batteries (eneloop pro)
|
About 3:45 min (Phantom on)
About 6:00 min (Phantom off)
|
|
DR-60D+BP-6AA
|
|
|
Alkaline batteries (EVOLTA)
|
About 5:30 min (Phantom on)
About 10:30 min (Phantom off)
|
|
NI-MH batteries (eneloop)
|
About 7:30 min (Phantom on)
About 12:00 min (Phantom off)
|
|
NI-MH batteries (eneloop pro)
|
About 9:30 min (Phantom on)
About 14:30 min (Phantom off)
|
|
Dimensions
|
133(W)×93.2(H)×78(D)mm (with the top adapter attached)
|
|
Weight
|
510g (not including batteries)
|
|
Operating temperature
|
0˚C to 40˚C
|
|
Standard accessories
|
USB cable, warranty card, Owner's manual
|
|
Computer compatibility
|
|
Windows
|
|
OS
|
Windows XP, Windows Vista, Windows 7, Windows 8
|
|
CPU
|
Pentium 300MHz or more
|
|
RAM
|
128MB or more
|
|
USB
|
recommended: USB2.0
|
|
Macintosh
|
|
OS
|
Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4),
Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7),
OS X Mountain Lion(V10.8)
|
|
CPU
|
Power PC, iMac, G3, G4 266MHz or more
|
|
|
64MB or more
|
|
USB
|
recommended: USB2.0
|
|
Audio performance
|
|
Frequency response
|
20-20kHz +0.5/-2dB(LINE IN or MIC IN to LINE OUT, Fs44.1k/48kHz, JEITA)
20-40kHz +0.5/-3dB(LINE IN or MIC IN to LINE OUT, Fs96kHz, JEITA)
|
|
Distortion
|
0.02% or less(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96kHz, JEITA)
|
|
S/N ratio
|
92dB or more(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96kHz, JEITA)
|
|
Equivalent input noise
|
-120dBu or more
|
Recording Duration
The table below shows the maximum recording time on SD/SDHC cards of different capacities for different file formats for recording.
|
File format(recording setting)
|
SD/SDHC card capacity(hours:mintes)
|
|
1GB
|
2GB
|
4GB
|
8GB
|
|
WAV/BWF 16bit(STEREO)
|
44.1kHz
|
1:41
|
3:22
|
6:44
|
13:28
|
|
48kHz
|
1:33
|
3:06
|
6:12
|
12:24
|
|
96kHz
|
0:46
|
1:33
|
3:06
|
6:12
|
|
WAV/BWF 24bit(STEREO)
|
44.1kHz
|
1:07
|
2:15
|
4:30
|
9:00
|
|
48kHz
|
1:02
|
2:04
|
4:08
|
8:16
|
|
96kHz
|
0:31
|
1:02
|
2:04
|
4:08
|
- The recording times shown above are estimates. They might differ depending on the SD/SDHC card in use.
- The recording times shown above are not continuous recording times, but rather they are the total possible recording times for the SD/SDHC card.
- If recorded in mono in WAV files, the maximum recording time will be double the figures above.
For dual and 4-channel recording in WAV/BWF format, the recording times are about half those shown above
|
