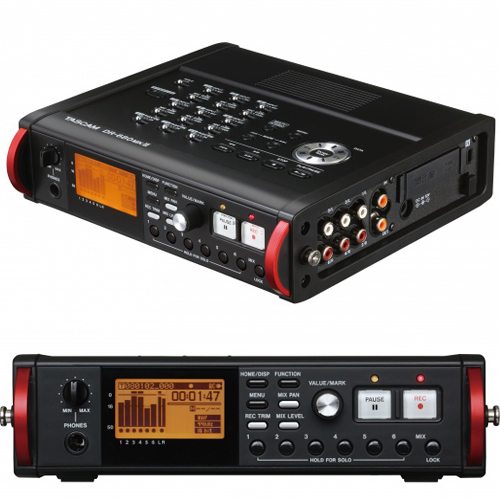

| รายละเอียดสินค้า |
Features
- SD/SDHC/SDXC cards used as recording/playback media
- 6 balanced mic/line inputs (1-4: XLR/TRS combo jacks, 5-6: TRS jacks)
- 6 unbalanced outputs (RCA pin jacks)
- COAXIAL digital input and output (S/PDIF, AES/EBU)
- Recording/playback formats: BWF, WAV, MP3
- With BWF format, recording starting times can be stored in files
- 8-track recording at 96kHz/24-bit (BWF, WAV)
6 mic/line inputs and stereo mix recording or 6 mic/line input and digital stereo recording
- Record MP3 files at 96, 128, 192 and 320 kbps
- Record 4-channel MP3 files
From 4 mic/line inputs (XLR/TRS combo jacks) or 2 mic/line inputs and digital stereo inputs
- 2-track recording at 24-bit/192kHz (BWF, WAV)
From 2 mic/line inputs or digital stereo inputs
- Digital inputs and outputs support double speed 96 kHz and quad speed 192 kHz
- Sampling frequencies
44.1, 48, 96, 192 kHz (BWF, WAV) 44.1, 48 kHz (MP3)
- Quantization bit depth: 16/24-bit (BWF, WAV)
- 6 channels of TASCAM HDDA mic preamps for high audio quality with 48V phantom power
- Limiter and low-cut filter available on each mic/line input
- Built-in stereo monitoring mixer for headphone mix and/or recording
- Dual-recording function allows two files to be recorded simultaneously at different levels
- GANG function allows the input gain of multiple channels to be operated simultaneously
- Pre-recording function allows the capture of audio two seconds before recording is started
- Automatic-recording function can start and stop recording automatically in response to the input signal level (−48, −24, −12 or −6 dB)
- Even when multiple tracks are used, all recordings made at the same time can be managed as a single take/file
- Track incrementation allows a recording to be split by creating a new file at the desired point without interrupting recording
- Up to 1000 takes and 5000 files can be recorded on a single card
- Mark function can be used to move to specific points (up to 99 marks per take)
- Wheel can be used to change the playback position
- Repeat playback function
- Panel lock function to prevent misoperation
- Cascade function allows transport control of multiple DR-680MKII units using a master unit
- File name format can be set to use a user-defined word or the date
- High-speed transfer of files to a computer using USB 2.0
- 128×64-dot matrix display with backlight
- Built-in mono speaker with 500mW output
- Headphone output and level control (50mW+50mW/ 32ohm)
- Powered by 8 AA batteries or the included AC adapter
- USB cable and shoulder strap included
- Folding stand convenient for tabletop use
- CS-DR680 carrying case (sold separately)
- AR-DR680 case by Portabrace also available
DR-680MKII SPECIFICATIONS
|
Recording media
|
SD card(64MB to 2GB), SDHC card(4GB to 32GB), SDXC card(64GB to 128GB)
|
|
File system
|
FAT16 / FAT32
|
|
Recording format
|
|
|
WAV
|
44.1k/48k/96k/192k Hz, 16/24bit *192kHz : 2ch recording/playback
|
|
BWF
|
44.1k/48k/96k/192k Hz, 16/24bit *192kHz : 2ch recording/playback
|
|
MP3
|
44.1kHz, 16bit, 96k to 320k bps
|
|
Analog audio inputs
|
|
|
MIC/LINE(BALANCED)
|
|
|
Connector
|
|
|
Ch 1-4
|
XLR-3-31 (1:GND, 2:HOT, 3:COLD)
6.3mm(1/4")TRS standard jack
|
|
Ch 5-6
|
6.3mm(1/4")TRS standard jack
|
|
Set to MIC
|
|
|
Input impedance
|
2.4kohm
|
|
Phantom power
|
+48V (+5%,-10%), +10mA/Ch
|
|
Standard input level
|
|
|
LOW
|
-51.5dBu
|
|
HIGH
|
-75.5dBu
|
|
Maximum input level
|
|
|
LOW
|
+3dBu
|
|
HIGH
|
-21dBu
|
|
MIC input gain
|
63dB
|
|
Set to LINE
|
|
|
Input impedance
|
10kohm
|
|
Standard input level
|
+4dBu
|
|
Maximum input level
|
+24dBu
|
|
LINE input gain
|
63dB
|
|
Analog audio output
|
|
|
LINE OUT(UNBALANCED)
|
|
|
Connector
|
RCA pin jacks
|
|
Output impedance
|
200ohm
|
|
Standard output level
|
-10dBV
|
|
Maximum output level
|
+6dBV
|
|
Phones
|
|
|
Connector
|
6.3mm(1/4")stereo phone jack
|
|
Maximum output level
|
50mW + 50mW (32ohms loaded)
|
|
Speaker
|
|
|
Diameter
|
35mm
|
|
Impedance
|
8ohm
|
|
Maximum output level
|
500mW
|
|
Digital Input/Output
|
|
|
Connector
|
RCA pin jack
|
|
Format
|
IEC60958-3(S/PDIF), AES3-2003(AES/EBU)
|
|
Single
|
44.1k/48k Hz
|
|
Double
|
96kHz
|
|
Quad
|
192kHz
|
|
Level
|
0.5 Vp-p typical
|
|
Output impedance
|
75ohm +/-20% unbalance
|
|
SYNC Input/Output
|
|
|
Connector
|
RCA pin jack
|
|
USB
|
|
|
Connector
|
Mini-B type
|
|
Format
|
USB2.0 HIGH SPEED(480Mbps)
|
|
Power
|
8 AA batteries(LR6)
AC100 to 240V, 50-60Hz
|
|
Power consumption
|
8W (Phantom power on)
|
|
Continuous operation time
|
|
|
Alkaline batteries
(EVOLTA)
|
About 6:00 (Rec:2ch, Phantom power OFF)
About 4:30 (Rec:2ch, Phantom power ON)
About 3:30 (Rec:6ch, Phantom power ON)
|
|
NI-MH batteries
(eneloop)
|
About 5:30 (Rec:2ch, Phantom power OFF)
About 4:30 (Rec:2ch, Phantom power ON)
About 4:00 (Rec:6ch, Phantom power ON)
|
|
Lithium batteries
(Energizer ULTIMATE LITHIUM)
|
About 11:00 (Rec:2ch, Phantom power OFF)
About 9:30 (Rec:2ch, Phantom power ON)
About 7:30 (Rec:6ch, Phantom power ON)
|
|
Dimensions
|
216.4(W)×56(H)×188.4(D)mm
8.5(W)×2.2(H)×7.4(D)inch
|
|
Weight
|
1.4kg(with batteries), 1.2kg(without batteries)
3.1lbs(with batteries), 2.6lbs(without batteries)
|
|
Operating temperature
|
0 to 40˚C
|
|
Standard accessories
|
AC adaptor, USB cable, Shoulder strap, Owner's manual including warranty card
|
|
Audio performance
|
|
Frequency response
|
20Hz to 20kHz +0.5/-1.5dB (Fs 44.1kHz, LINE IN to LINE OUT, Input Level=FS-1dB)
20Hz to 20kHz +0.5/-0.5dB (Fs 48kHz, LINE IN to LINE OUT, Input Level=FS-1dB)
20Hz to 40kHz +0.5/-1.0dB (Fs 96kHz, LINE IN to LINE OUT, Input Level=FS-1dB)
20Hz to 80kHz +0.5/-5.0dB (Fs 192kHz, LINE IN to LINE OUT, Input Level=FS-1dB)
|
|
Distortion
|
0.007% (1kHz, LINE IN to LINE OUT)
|
|
S/N ratio
|
100dB (A-Weight, MIC IN to DIGITAL OUT)
100dB (A-Weight, LINE IN to LINE OUT)
|
|
EIN
|
-124dBu or less
|
|
Computer compatibility
|
|
Windows
|
|
OS
|
Windows XP, Windows Vista, Windows 7, Windows 8
|
|
Macintosh
|
|
OS
|
Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4),
Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7),
OS X Mountain Lion(V10.8)
|
|
