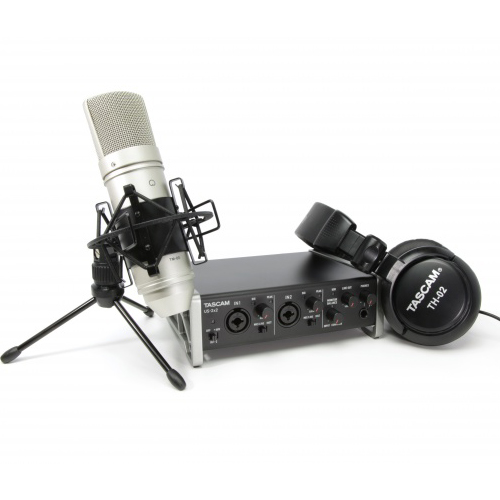

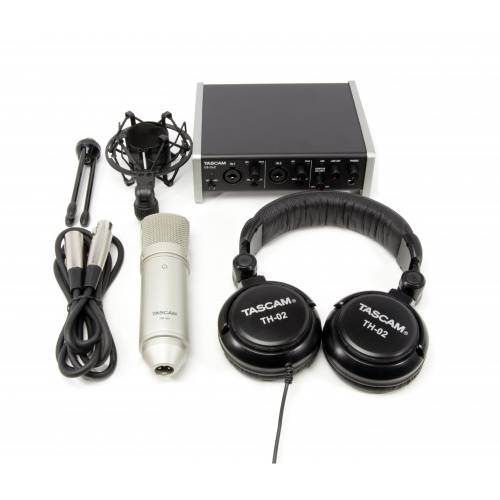

ไมค์บันทึกเสียง Tascam US-2x2TP

Features

US-2x2 USB Audio/MIDI Interface

• Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
• NE5532 op-amps used in the audio input and output stages
• Up to 96kHz/24-bit recording
• Support for Windows and Macintosh
• USB 2.0 computer connection
• Connect with iPads and other iOS devices
• +48V phantom power for all inputs
• High-impedance inputs available
• Input level specifications boast a range of 57dB – ideal for using dynamic mics
• Direct monitoring function for zero-latency monitoring
• Tough all-metal casing for durability
• Angled design provides excellent usability on a desktop
• Balanced analog TRS output jacks suitable for connection to powered monitors
• Standard TRS headphones output jack
• Separate controls for line output & headphone output levels
• MIDI input and output
• Output sources can be selected in the setting panel
• Input sound monitoring can be set to stereo or mono
• Input muting function eliminates noise from unused inputs
• USB class compliant 2.0 support
• License cards included for SONAR X3 LE/Ableton Live Lite9
• Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band)
• Dimension (W×H×D)：186mm×65mm×160mm / 7.3" × 2.6" × 6.3"
• Weight:1,100g / 2.4 lb

TH-02 Stereo Monitor Headphones

• Foldable design for compact storage and transport
• Tightly-stitched, padded headband and ear pads for stylish comfort
• Closed-back dynamic design featuring rich bass response and crisp highs
• Snap-on 1/8" (3.5mm) to 1/4" (6.3mm) adapter
• Driver diameter: 50mm
• Impedance: 32 Ohms
• Sensitivity: 98 dB +/- 3dB
• Frequency response: 18 Hz to 22 kHz
• Max input power: 600 mW
• Cable length: 9.8ft (3m) when fully extended
• Dimension (W×H×D) : 180mm×240mm×90mm / 7.1 inch×9.5 inch×3.5 inch
• Weight : 298g / 0.7 lb

TM-80 Condenser Microphone

• Condenser microphone utilizes precisely designed electronic circuitry.
• Microphone capsule assembly features an 18mm pure aluminum diaphragm
• Cardioid polar pattern
• Frequency response: 20Hz to 20kHz
• Sensitivity : -38dB +/-2dB (0dB=1V/Pa at 1kHz)
• Phantom power requirement: 9 - 48V DC
• Output impedance : 200ohm +/-30% (at 1kHz)
• Load impedance : >1k ohm
• Max SPL : 136dB (at 1kHz=1% THD)
• S/N ratio : 77dB
• Housing : Die cast zinc
• Dimensions (W×H×D) : 48mm×165mm×48mm / 1.9 inch×6.5 inch×1.9 inch
• Includes : shock mount, mini desk stand, mic cable (1.8m XLRM – XLRF)

TASCAM TRACKPACK 2X2 SPECIFICATIONS

For Specifications on the US-2x2, please see US-2x2 product page.

US-2x2 product page :Click here
