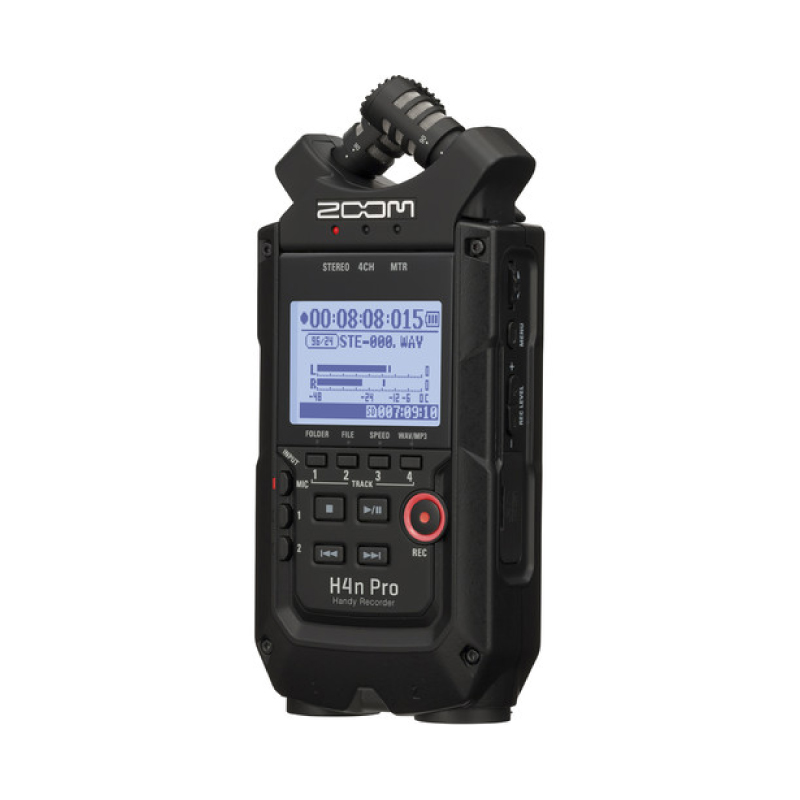

ZOOM H4N-PRO/BLACK HANDY RECORDER

เครื่องบันทึกเสียง Zoom H4n Pro Handy Recorder

Advanced X/Y microphones, incredibly natural-sounding preamps, and built-in cutting-edge effects make the H4n Pro the ultimate portable 4 track recorder for musicians.

•  General:
  • Number of Simultaneous Recording Tracks: 2 (STEREO mode), 4 (4CH mode), 2 (MTR mode)
  • Recording Time 4 GB (SDHC): Approx. 380 minutes (WAV 44.1 kHz / 16-bit stereo track) Approx. 68 hours (MP3 44.1 kHz / 128 kbps stereo track)
    * Recording times are approximations. Actual times may differ according to recording conditions.
  • Maximum Number of Simultaneous Recording Files Size: 2 GB
  • Projects: 1000/card
  • Locate Function: Hours/Minutes/Seconds/Milliseconds
  • Other Functions: Punch-in/out, Bounce, A-B repeat
  • Two Effects Modules:
    • STEREO / 4CH Mode: LO CUT, COMP/LIMITER
    • MTR Mode: PRE AMP module, EFX module
  • Types: 53
  • Patches: 60
  • Tuners: Chromatic, Guitar, Bass, Open A/D/E/G, DADGAD
  • Metronome Sound Sources: 5
  • Variable Beat: 1/4 – 8/4, 6/8, unaccentuated
  • Tempo: 40.0 – 250.0 BPM
  • A/D Conversion: 24-bit x 128 oversampling
  • D/A Conversion: 24-bit x 128 oversampling
  • Recording Media: SD card, 16 MB to 2 GB; SDHC card, 4 GB to 32 GB
  • Display: Full-dot backlit LCD (128 x 64 pixels)
• Data Type – WAV Format (Record/Play):
  • Quantization: 16- / 24-bit
  • Sampling frequency: 44.1 / 48 / 96 kHz
• Data Type – MP3 Format (Recording):
  • Bit Rate: 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR
  • Sampling Frequency: 44.1 / 48 kHz
• Inputs:
  • Input [1] [2]: XLR (balanced input) / standard phone (unbalanced input) combo jack
  • Input Impedance:
    • Using Balanced Input: 3 kΩ or more, pin 2 hot
    • Using Unbalanced Input: 470 kOmega; or more
  • Input Gain:
    • Using Balanced Input: -16 dB to +43 dB
    • Using Unbalanced Input: -30 dB to +32 dB
  • Built-In Stereo Mic: Unidirectional condenser microphone
    • Sensitivity: -45 dB/1 Pa at 1 kHz
    • Input Gain: -16 dB to +51 dB
    • Maximum Sound Pressure Input: 140 dB SPL
  • External Mic: Mini stereo phone jack
    • Input Impedance: 2 kΩ or more
    • Input Gain: -16 dB to +51 dB
• Outputs:
  • Line/Phone:
    • LINE Output Load Ompedance: 10 kΩ or more
    • LINE Rated Output Level: -10 dBu
    • PHONE: 20 mW + 20 mW (into 32Ω load)
  • Monaural Speaker: 400 mW 8Ω
  • Phantom Power: 48V, 24V, OFF
  • USB: USB 2.0 High Speed Mass Storage Class operation, Audio interface operation (USB functions can be operated by USB bus power)
• Power Requirements: DC 5V 1A AC from AC adapter (ZOOM AD-14), (2) AA batteries
• Batteries: IEC R6 (AA 2x)
• Continuous Recording Time:
  • STEREO Mode: Using built-in mics at 44.1 kHz/16-bit without headphones connected, about 6 hours using alkaline batteries or about 8 hours using NiMH (2450 mAh) batteries
  • STAMINA Mode: Using built-in mics at 44.1 kHz/16-bit without headphones connected, about 10 hours using alkaline batteries or about 12 hours using NiMH (2450 mAh) batteries
• Dimensions (W x D x H): 2.87 x 6.19 x 1.46 in | 73 x 157.2 x 37 mm
• Weight: 10.4 oz | 294 g
