PreSonus Studio 1810 Specs
| Mac System Requirements |
Mac OS X 10.8.5, 64-bit or later
Intel i-series, 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
USB 2.0 port
32 GB hard disk space
PreSonus Universal Control 2.0 or later
Monitor with 1366 x 768 resolution (high-dpi monitor recommended)
Multitouch-enabled monitor required for touch operation |
| Windows System Requirements |
Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
USB 2.0 port
32 GB hard disk space
PreSonus Universal Control 2.0 or later
Monitor with 1366 x 768 resolution (high-dpi monitor recommended)
Multitouch-enabled monitor required for touch operation |
| iOS System Requirements |
iOS 9.3 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2 |
| Android System Requirements |
Android 5.0 (Lollipop) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface) |
| Sample Rate |
44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Converters |
Converter Resolution: 24-bit
Converter Dynamic Range: 114 dB
Converter Dynamic Range: 114 dB |
| Maximum Level |
+16 dBu, min gain |
| Gain Range |
80 dB |
| Frequency Response |
20 Hz to 20 kHz (unity gain) |
| Dynamic Range |
110 dB (A-wtd, min gain) |
| THD + N |
0.005% (1 kHz, 0 dBu, unity gain) |
| EIN |
-128 dBu (A-wtd, 20 kHz BW, Rs=150 Ohms, max gain) |
| Input Impedance |
1400 Ohms |
| Phantom Power |
48 V (>10 mA per channel) |
| Maximum Level |
+21 dBu (balanced, min gain) |
| Gain Range |
40 dB |
| Frequency Response |
20 Hz to 20 kHz (unity gain) |
| Dynamic Range |
112 dB (A-wtd, min gain) |
| THD + N |
0.005% (1 kHz, +18 dBu, min gain) |
| Input Impedance |
10 kOhms |
| Maximum Level |
+15 dBu (unbalanced, min gain) |
| Gain Range |
80 dB |
| Frequency Range |
20 Hz to 20 kHz (min gain) |
| Dynamic Range |
112 dB (A-wtd, min gain) |
| THD + N |
0.020% (1 kHz, +10 dBu, min gain) |
| Input Impedance |
1 MOhm |
| Type |
Main and Line Outputs: 1/4" / 6.35 mm TRS female, DC coupled |
| Maximum Level |
+18 dBu, balanced |
| Frequency Response |
Main and Line Outputs: 20 Hz to 20 kHz |
| Dynamic Range |
108 dB (A-wtd, -60 dBFS) |
| THD+N |
0.004% (1 kHz, -1 dBFS, unity gain) |
| Maximum Power |
150 mW / channel (60 Ohms load) |
| Frequency Response |
20 Hz to 20 kHz (unity gain) |
| Dynamic Range |
103 dB (A-weighted, 1 kHz, unity gain) |
| THD+N |
0.250% (1 kHz, 150 mW, unity gain) |
| Headphone Impedance Range |
32 to 600 Ohms |
| Dimensions (H x W x D) |
1.8 x 12.5 x 5.5" / 4.4 x 31.8 x 14.0 cm |
| Weight |
3.2 lb / 1.5 kg |

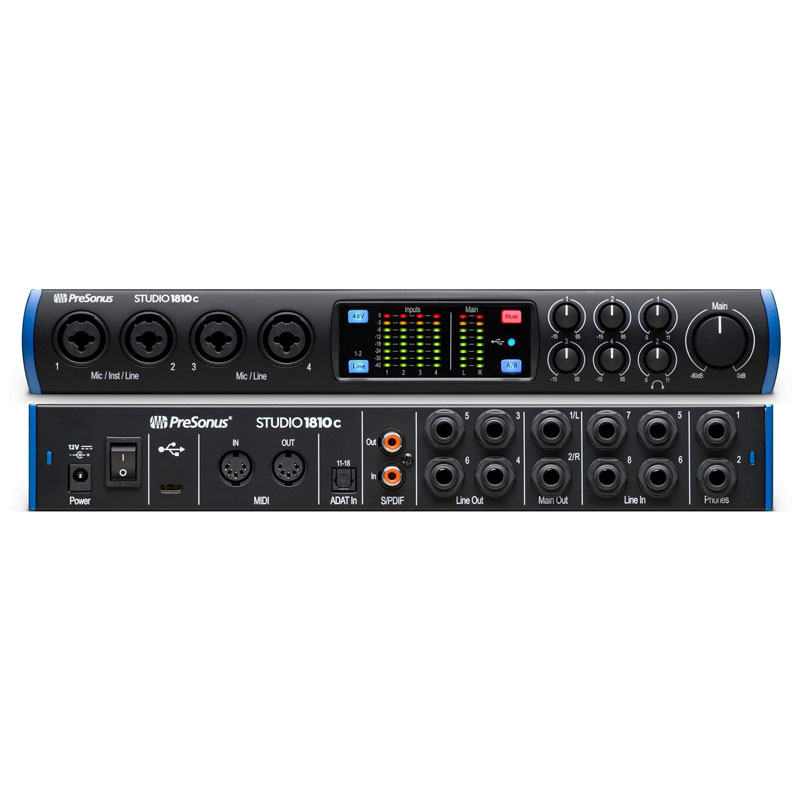

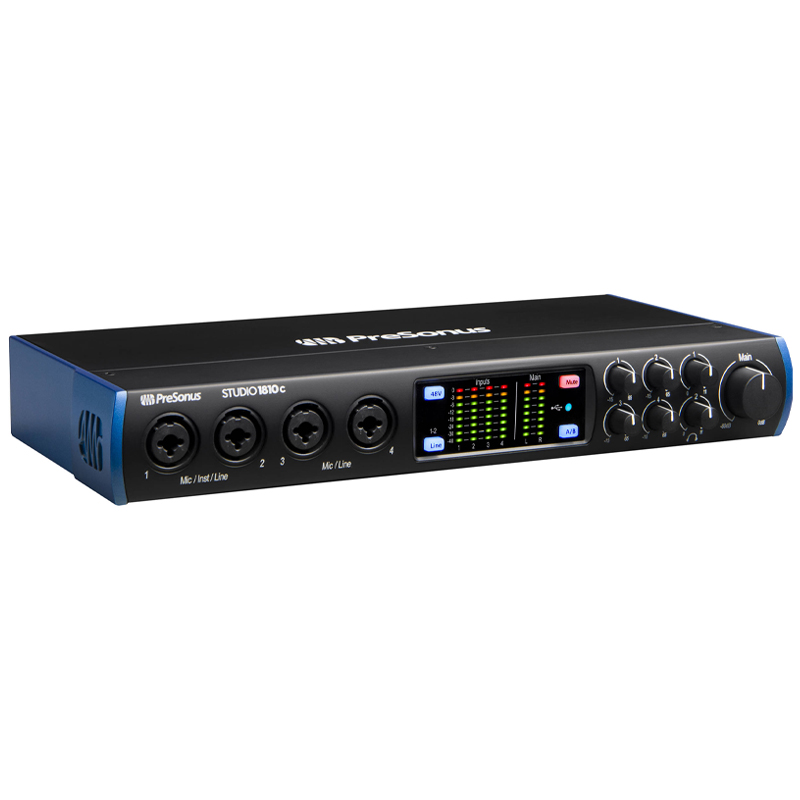

PreSonus Studio 1810c Overview
The PreSonus Studio 1810c is an 18x8 USB Type-C audio/MIDI interface offering high-resolution conversion and a powerful software package for bands and audio engineers in home/project studios and mobile setups. Connect mic-, instrument-, or line-level sources via four XLR-1/4" combo inputs, each utilizing its own gain control and XMAX Class-A mic preamp with phantom power. The four rear-panel 1/4" inputs are ideal for accepting additional line-level sources. Operate at up to 24-bit / 48 kHz resolution without sacrificing channel count, or at 192 kHz sample rate with 8x6 I/O functionality.
The Studio 1810c has six balanced 1/4" line outputs; the first two are fed by a dedicated level control for use with a pair of active monitors. Two 1/4" TRS stereo headphone outputs with front-panel volume knobs accommodate two sets of headphones. Digital connections include stereo S/PDIF I/O via coaxial jacks, and an 8-channel ADAT optical input. 5-pin MIDI I/O jacks on the rear panel allow simple hookup of a MIDI controller, synthesizer, or sound module.
The Studio 1810c includes USB cables for easy connectivity to your compatible macOS or Windows computer. It is powered via an included external power supply. Also supplied is a software bundle featuring the Studio One Artist DAW and the Studio Magic plug-in suite—a slew of creative tools for producers, engineers, songwriters, and more.
Flexible multichannel audio/MIDI interface ideal for bands, audio engineers, and producers
AD/DA conversion at up to 24-bit / 192 kHz resolution
Four XLR-1/4" combo inputs—two support mic/instrument/line level, two support mic/line level
Four rear-panel 1/4" TRS line-level inputs
Line switch toggles inputs 1-2 between line and instrument level
XMAX Class-A mic preamps with selectable 48 VDC phantom power
Dedicated controls for input gain, main output level, headphone volume, and main output mute
Two 1/4" main/line outputs and four additional 1/4" line outputs
All 1/4" line outputs are balanced and DC-coupled
1/4" stereo headphone output with A/B button for easy monitoring of outputs 1-2 or 3-4
Additional 1/4" stereo headphone output with independent volume control
ADAT optical input supports eight channels at up to 48 kHz, or four channels at 96 kHz
Coaxial S/PDIF ports for two extra digital inputs and outputs
Multi-segment LED meters display levels for inputs and main outputs
Monitor mix control with free UC Surface for macOS, Windows, iPad, and Android
Includes Studio One Artist DAW software with flexible routing, zero-latency monitor mixing, and control room integration
Includes Studio Magic plug-in suite with seven plug-ins ranging from EQ to virtual instruments
|
