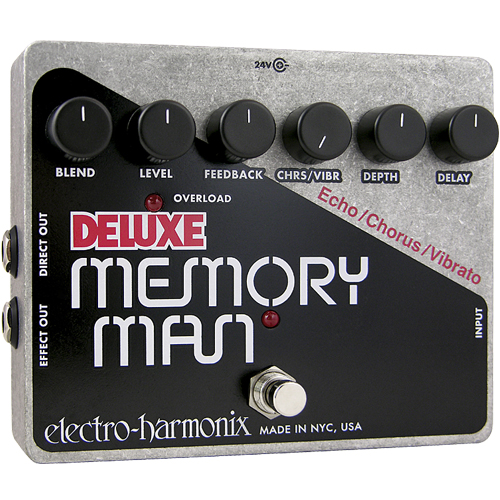

Electro-Harmonix Deluxe Memory Man

Electro-Harmonix XO Series Deluxe Memory Man

-Easy operation and direct out jack

-Vary the signal mix with Blend control

-Create pitch-shift effects by changing delay rate

-Chorus/vibrato control

Easy operation and direct out jack

The bypass footswitch on top of the Deluxe Memory Man allows you to switch the effect in and out. Unmodified signal is always available at the direct out jack. The Deluxe memory Man features a level control with an overload led that blinks on with the loudest notes you play in order to prevent overdriving the Deluxe Memory Man. Overdriving the Memory Man will cause distortion.

Vary the signal mix with Blend control

The Memory Man's blend control allows you to vary the mix of direct and delayed signals. The center position provides equal levels of both. Feedback provides delay repeats, or multiple echoes. Fairly high feedback with short delay settings produces a reverb effect.

Create pitch-shift effects by changing delay rate

The Memory Man's delay control determines the time between direct and delayed signals, and between the repeats when feedback is used. Strange, eerie and unusual pitch-shift effects can be produced by changing the delay while playing, especially while using feedback.

Chorus/vibrato control

The chorus/vibrato control of the Deluxe Memory Man introduces a modulation in the delay time: slow for chorus, faster for vibrato. This produces a "doppler" pitch shifting in the delayed signal. A rich, vibrant chorus effect is produced with the switch set to chorus, delay fairly short, blend at the center, chorus set high, and feedback fairly high.

Features:

-Die-case XO Series Chassis

-550ms of echo, chorus, and vibrato

-Overload LED

-Level control and Overload LED

-Blend, delay, and Chorus/Vibrato controls

-True bypass operation

-Bypass footswitch

Tech Specs

Pedal Type      Delay

Maximum Delay Time 0.55s (550ms)

Inputs  1 x Instrument

Outputs           2 x 1/4"

Height  2.5"

Width   7.25"

Depth  5"

Weight 2 lbs.

Power Supply Included           Yes

Manufacturer Part Number     MEMORY
