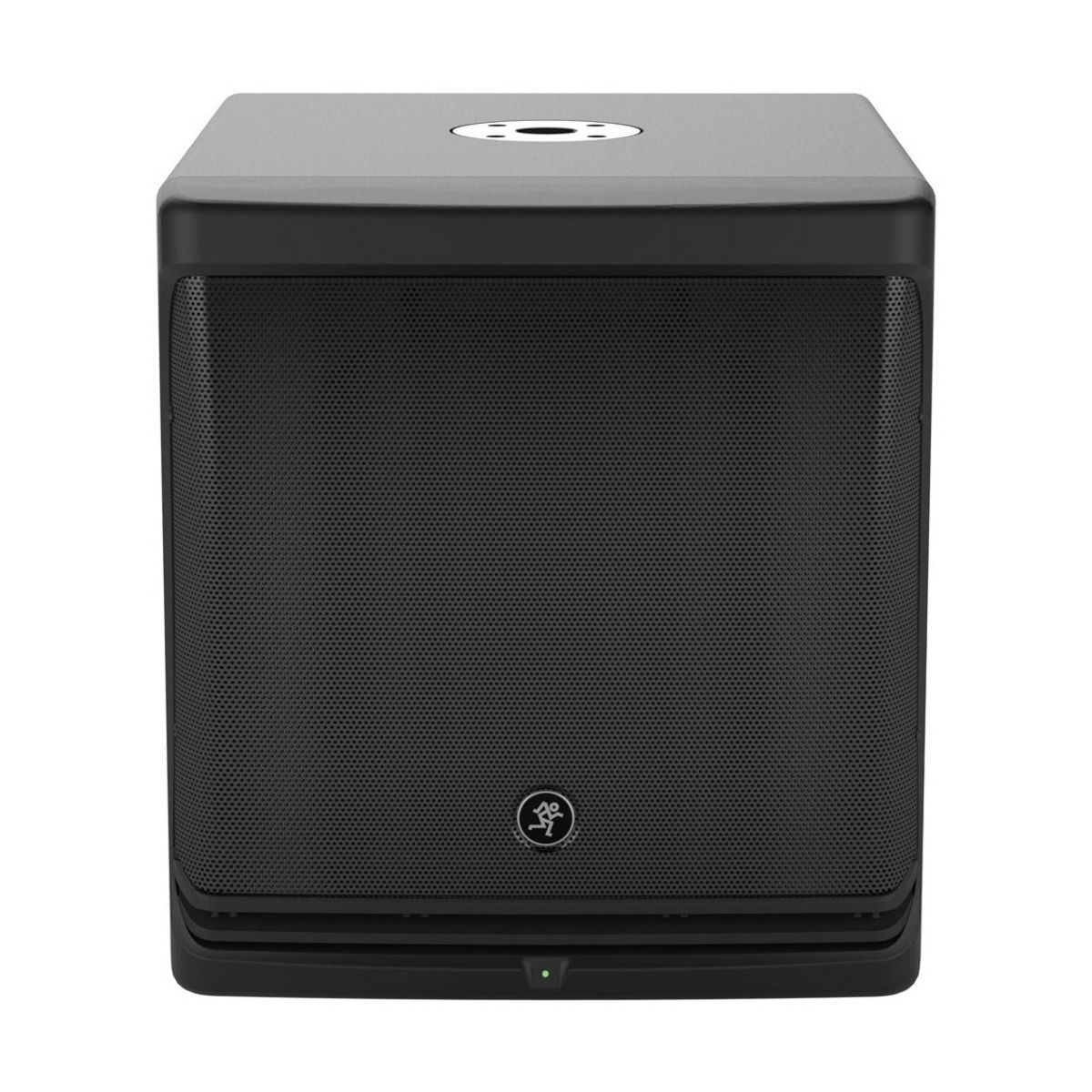

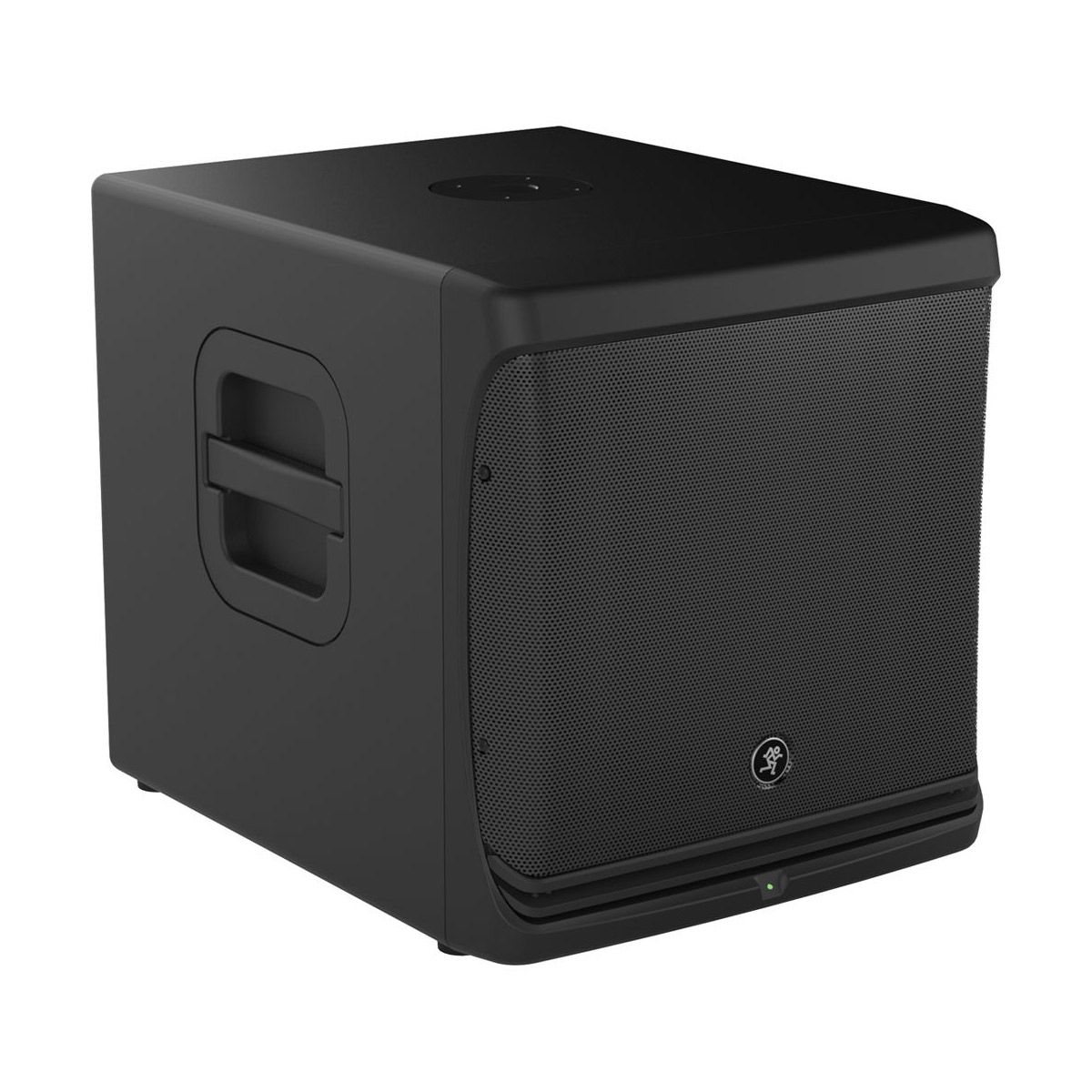

Mackie DLM12S 2000W 12" Powered Subwoofer

• 2000W power via ultra-efficient Class-D amplification
• High-power 12″ heat-treated woofer with 3″voice coil
• Ultra-low frequency extension hits hard down to 35Hz

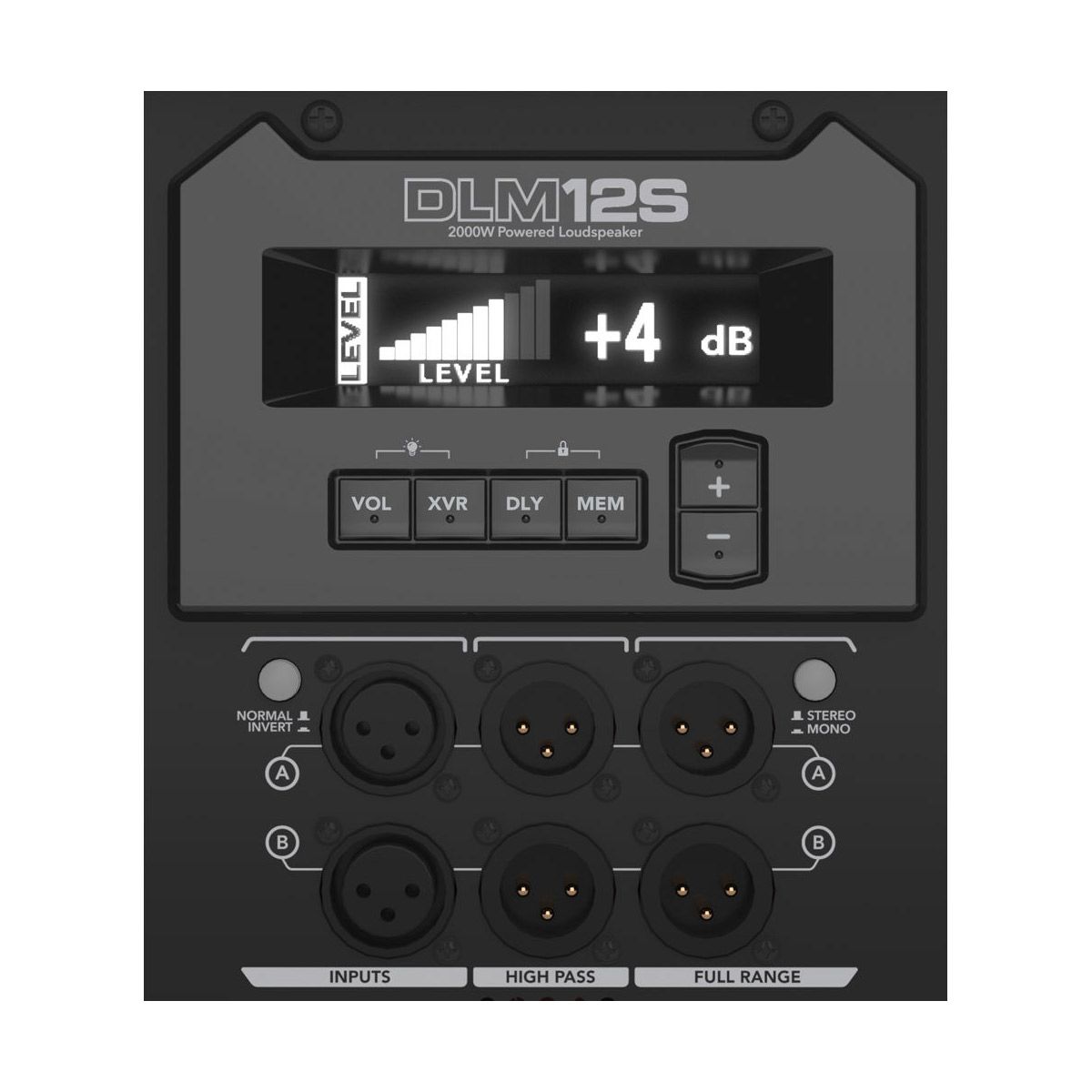

• DLP Digital Processor
• Powerful, one-touch digital processor with bright OLED screen
• Precision digital crossover
• Presets for use with DLM and SRM Series full-range loudspeakers
• Variable crossover control for optimization with any loudspeaker
• Six total XLR connects for flexible I/O control
• Two line level inputs
• Two full-range outputs for side fills, etc.
• Two high-pass outputs for direct connection to DLM loudspeakers
• Unmatched system control for professional applications
• Alignment delay up to 300ms for delay stack, balcony, etc.
• Three memory locations for instant venue setting recall
• Smart Protect DSP dynamically protects amp/driver
• Innovative ultra-compact design
• Highest-output compact subwoofer on the market
• Fit an entire DLM system in nearly any car
• Stack them up for storage
• Pole mount a DLM8 or DLM12
• Extremely durable 15mm poplar cabinet
• Rugged, powder-coated 20 gauge steel grille

Specifications

Input / Output

Active or Passive Active, Class-D amplification

Audio Inputs 2 x XLR balanced (1 x L/R)

Input Impedances 20kΩ balanced10kΩ unbalanced

Audio Outputs 2 x XLR balanced – Full Range Outputs (1 x L/R) parallel with input2 x XLR balanced – High Pass Outputs (1 x L/R)

Amplifier / Speaker

Transducer 12″ (305 mm) woofer diameter3″ (76 mm) voice coil diameter

Paper diaphragm material

Ferrite magnet material

Rated Power 1,000W RMS2,000W peak

THD < 1%

Cooling Multi-speed fan

Performance

Frequency Response 35 Hz to 90 Hz or 35 Hz to 135 Hz, (-10 dB) user-selectable

Maximum Sound Pressure Level (SPL) 128 dB @ 1 m, calculated

Crossover Point 60 to 120 Hz, user-selectable

System Processor DLP Digital System Processing:Volume [VOL]: Off (-∞ dB) to +10 dB

Crossover [XVR]: Four preset modes, one variable mode

Delay [DLY]: 0 to 300 ms

Memory [MEM]: 3 locations for instant venue setting recall and factory reset

General

Construction Durable 0.6″ (15 mm) poplar cabinetBlack paint finish

Handle on each side

Powder-coated 20-gauge steel grille

Power Requirements 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W

AC Plug Style 3-pin IEC 250VAC

Operating Temperature Range 32 to 104°F (0 to 40°C)

Dimensions (H x W x D) 17.9 x 16.4 x 20.8″ (455 x 417 x 529 mm)

Weight 48 lb (21.7 kg)
