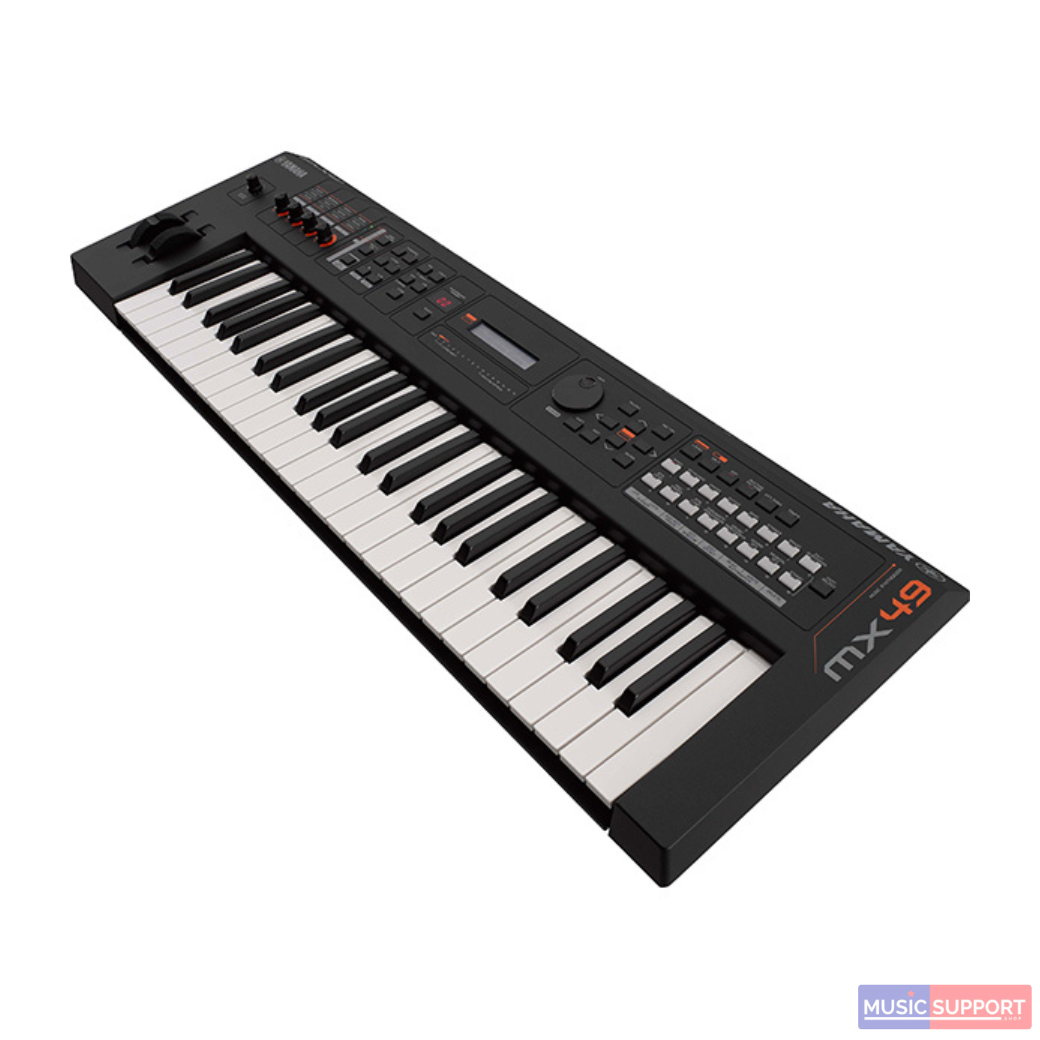

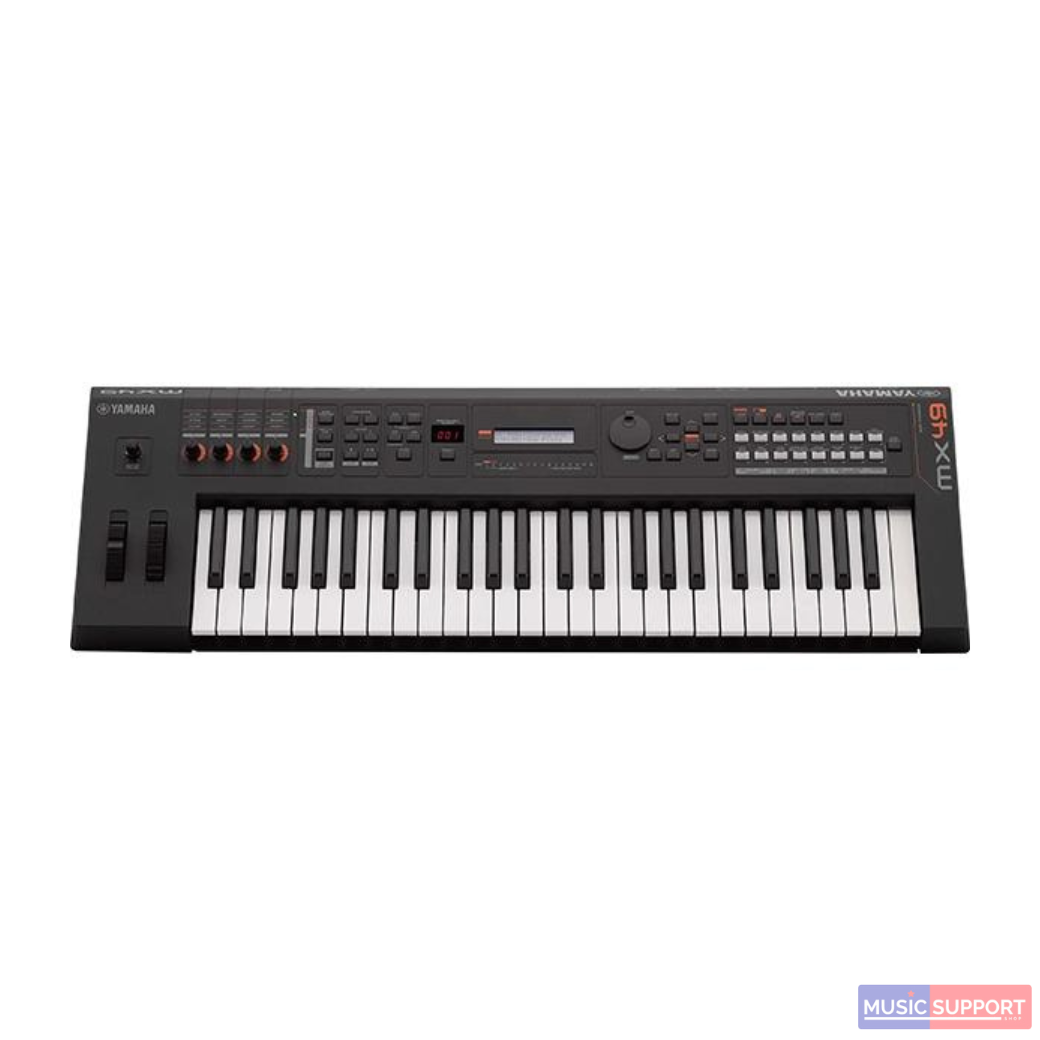

Yamaha MX49

Size/Weight

DIMENSIONS WIDTH 830 mm

HEIGHT 91 mm

DEPTH 298 mm

WEIGHT WEIGHT 3.8kg

Control Interface

KEYBOARD NUMBER OF KEYS 49

INITIAL TOUCH Yes

Tone generator

TONE GENERATOR AWM2

MAXIMUM POLYPHONY 128 notes

MULTI TIMBRAL CAPACITY 16 parts (Internal)

WAVE Approx.166 MB (when converted to 16-bit linear format)

VOICES Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits

PERFORMANCE User: 128 (16 parts)

EFFECTS Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands)

Sequencer

TEMPO (BPM) 5 – 300

SONGS 27 Demo Songs

PATTERNS 208 Patterns

ARPEGGIO 999 types

SEQUENCE FORMATS SMF Format 0 (playback only)

Other

SEQUENCE SOFTWARE COMPATIBLE WITH THE REMOTE CONTROL FUNCTION For Windows®: Cubase 6 or later, SONAR X1 ProducerFor Mac®: Cubase 6 or later, Logic Pro 9, Digital Performer 7 *Functions to be controlled differ depending on the software

CONTROLLERS Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1

DISPLAY 3 digit LED + 20 x 2 line character LCD (backlit)

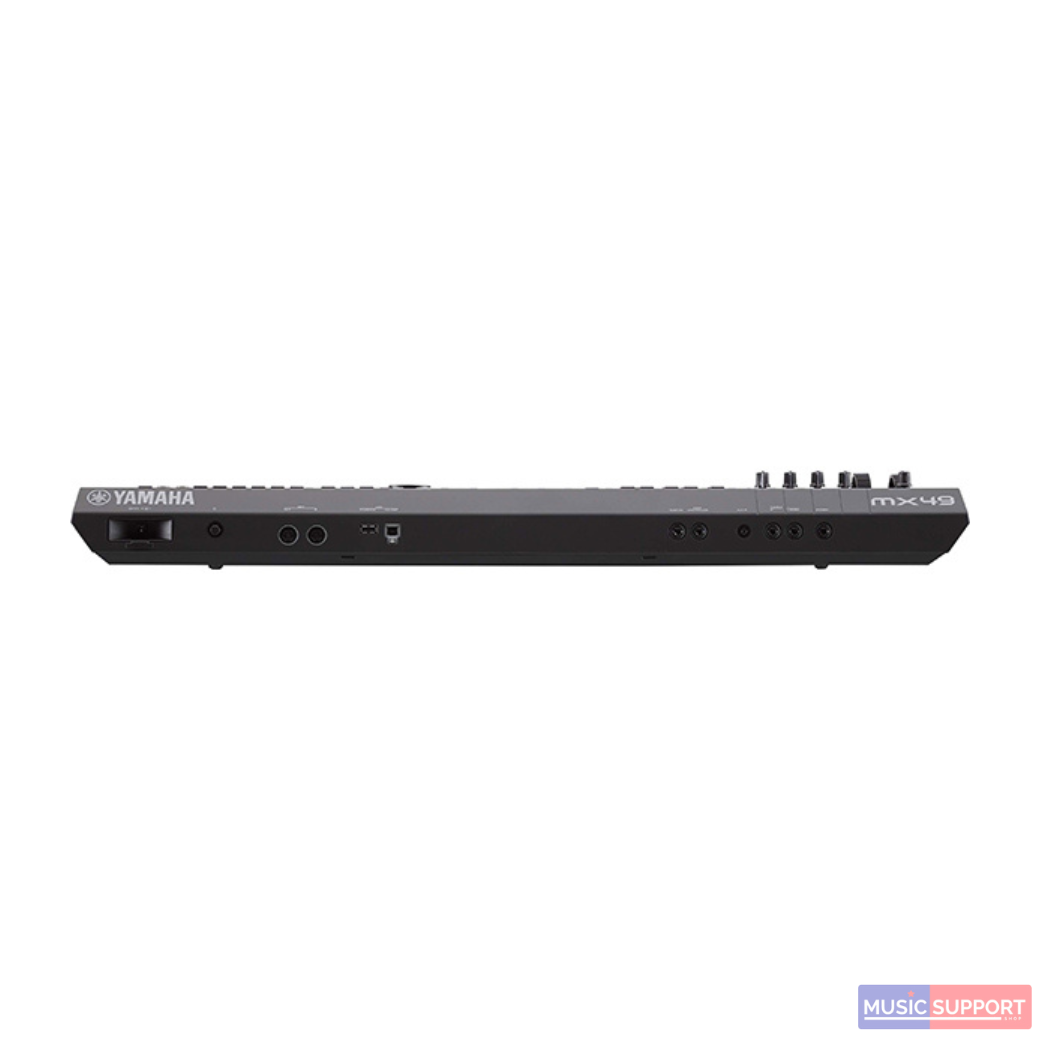

CONNECTORS OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] / [TO DEVICE], [AUX IN], DC IN

POWER SUPPLY 9 W

ACCESSORIES AC adaptor (PA-150 or an equivalent recommended by Yamaha), Owner’s Manual, Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer Parameter Manual, and Data List), DVD-ROM x 1 (containing DAW software)
