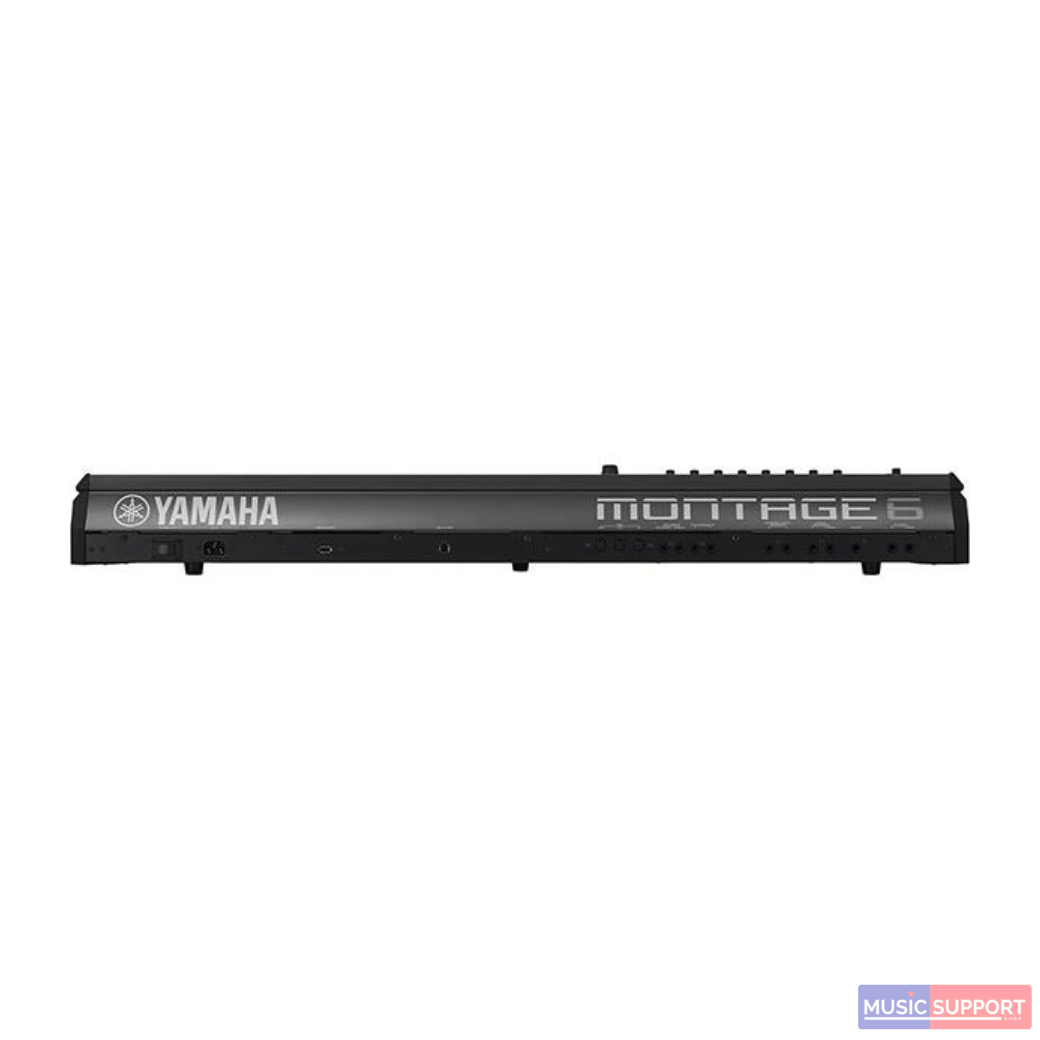

Yamaha Montage 6

Size/Weight

DIMENSIONS WIDTH 1,037 mm (40-13/16″)

HEIGHT 131 mm (5-3/16″)

DEPTH 396 mm (15-9/16″)

WEIGHT WEIGHT 15 kg (33 lbs., 1 oz.)

Control Interface

KEYBOARD NUMBER OF KEYS 61

TYPE FSX Keyboard

INITIAL TOUCH Yes

AFTERTOUCH Yes

Tone generator

TONE GENERATOR Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms

MAXIMUM POLYPHONY AWM2: 128 (max.; stereo/mono waveforms) FM-X: 128 (max.)

MULTI TIMBRAL CAPACITY 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part

WAVE Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.75 GB

PERFORMANCE Approx. 1,900

FILTER 18 types

EFFECTS Reverb x 12 types, Variation x 76 types, Insertion (A, B) x 76 types*, Master Effect x 15 types *A/D part insertion x 71 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

Other

CONTROLLERS Master Volume, AD Input Gain knob, Pitch Bend wheel, Modulation wheel, Ribbon Controller, Control Sliders x 8, Knobs x 8, Super Knob, Data dial

DISPLAY 7″ TFT Color Wide VGA LCD touch screen

CONNECTORS [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT]/[THRU], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT (BALANCED) [L/MONO]/[R] (6.3 mm, Balanced TRS jacks), ASSIGNABLE OUTPUT (BALANCED) [L]/[R] (6.3 mm, Balanced TRS jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)

POWER CONSUMPTION 27 W

ACCESSORIES AC Power cord, Owner’s Manual, Cubase AI Download Information

LIVE SETS Preset: 128 and more, User: 2,048

Performance Recorder

TRACKS 16 Sequence tracks, Tempo track, Scene track

RECORDING TYPE Real time replace, Real time overdub, Real time punch in/out

NOTE CAPACITY Approx. 130,000 notes

NOTE RESOLUTION 480 ppq (parts per quarter note)

TEMPO (BPM) 5 – 300

SONGS 64 songs

ARPEGGIO Parts: 8 Parts simultaneous (max.), Preset: Approx. 10,000 types User: 256 types

SEQUENCE FORMATS MONTAGE original format, SMF formats 0, 1
