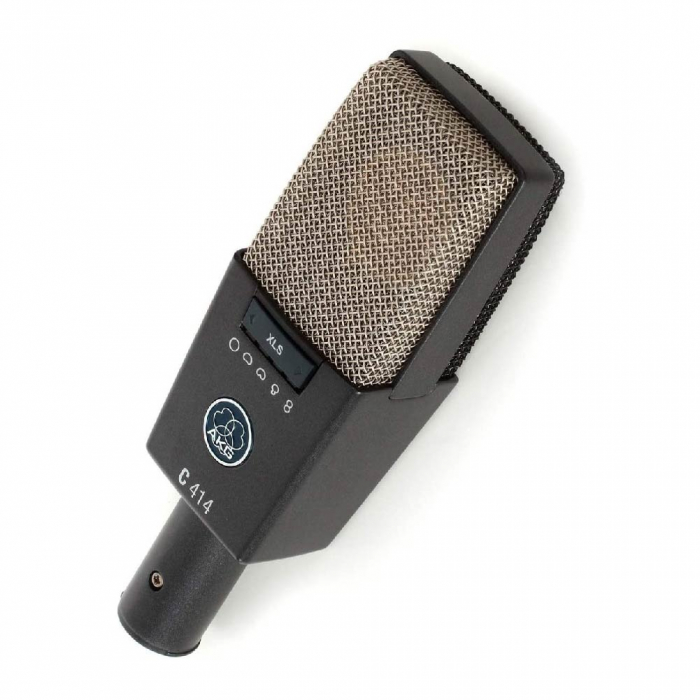

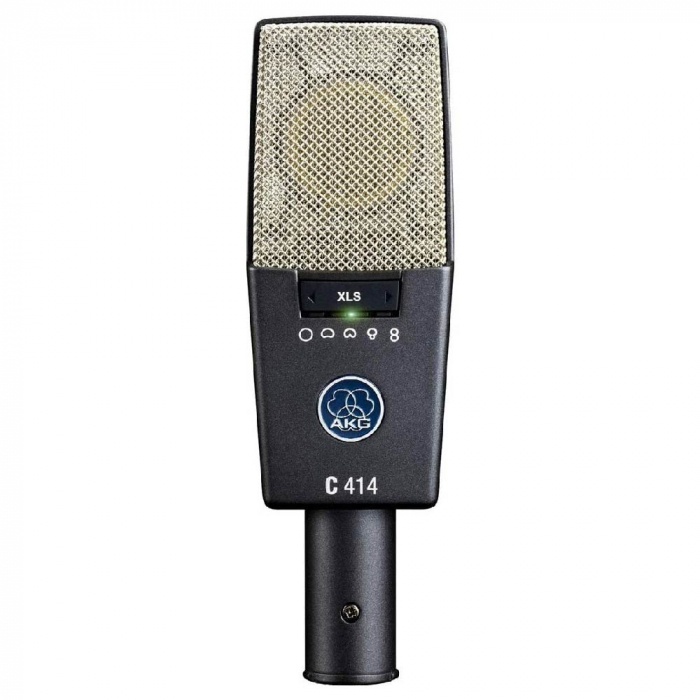

AKG C414XLS MICROPHONE Condenser

Engineered for highest linearity and neutral sound

• For beautifully detailed recording of vocals and any acoustic instrument

Nine selectable polar patterns

• For the perfect setting for every application

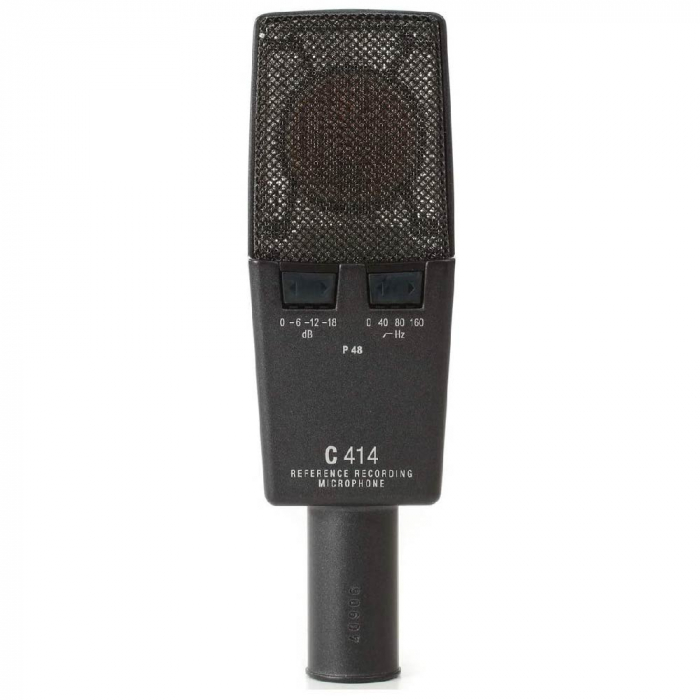

Three attenuation levels (-6,- 12,- 18dB)

• For close-up recording or high-output sources of up to 158dB SPL

A legend since 1971

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.

The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

General Specifications

• Audio frequency bandwidth20 - 20000 Hz
• Equivalent noise level6 dB-A
• Sensitivity23 mV/Pa
• Signal to Noise88 dB-A
• Preattenuation Pad-6; -12; -18 dB
• Bass cut filter160; 80; 40 Hz
• Electrical impedance200 Ohms
• Recommended load impedance2200 Ohms
• Polar PatternsCardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid

Powering Interface

• Voltage44 to 52 V
• Current4.5 mA

Dimensions

• Length38 mm
• Width50 mm
• Height160 mm
• Net Weight300 g

Design

• Finishdark gray/silver

Audio Output

• TypeBalanced XLR
• GenderMale
• Contacts3-pin

Application

• Pro StudioYes

Instrument

• VocalsYes
• Piano / StringsYes
• Horns / WoodwindsYes
