Definitive Technology AW6500 Outdoor Speaker 6.5" Woofer 200 Watts

Key Features

Low End Like Never Before

Racetrack-shaped planar pressure-coupled low bass radiators deliver rich, warm audio. Their total bass radiating area is greater than much bigger woofers and brings greater bass presence to every measure.

Double Up On Deep Bass

Active drivers, in conjunction with the low bass radiator, double the bass output but still maintain a weather-tight seal. This allows for the ultimate in placement flexibility, reliability and performance.

Sound Comes Full Circle

Integrated galvanized steel mounting brackets and unique enclosure shape allow a full 360 degrees of rotation. Now you can put your speakers just about anywhere while directing the audio to reach everywhere.

The Decision Is Clear

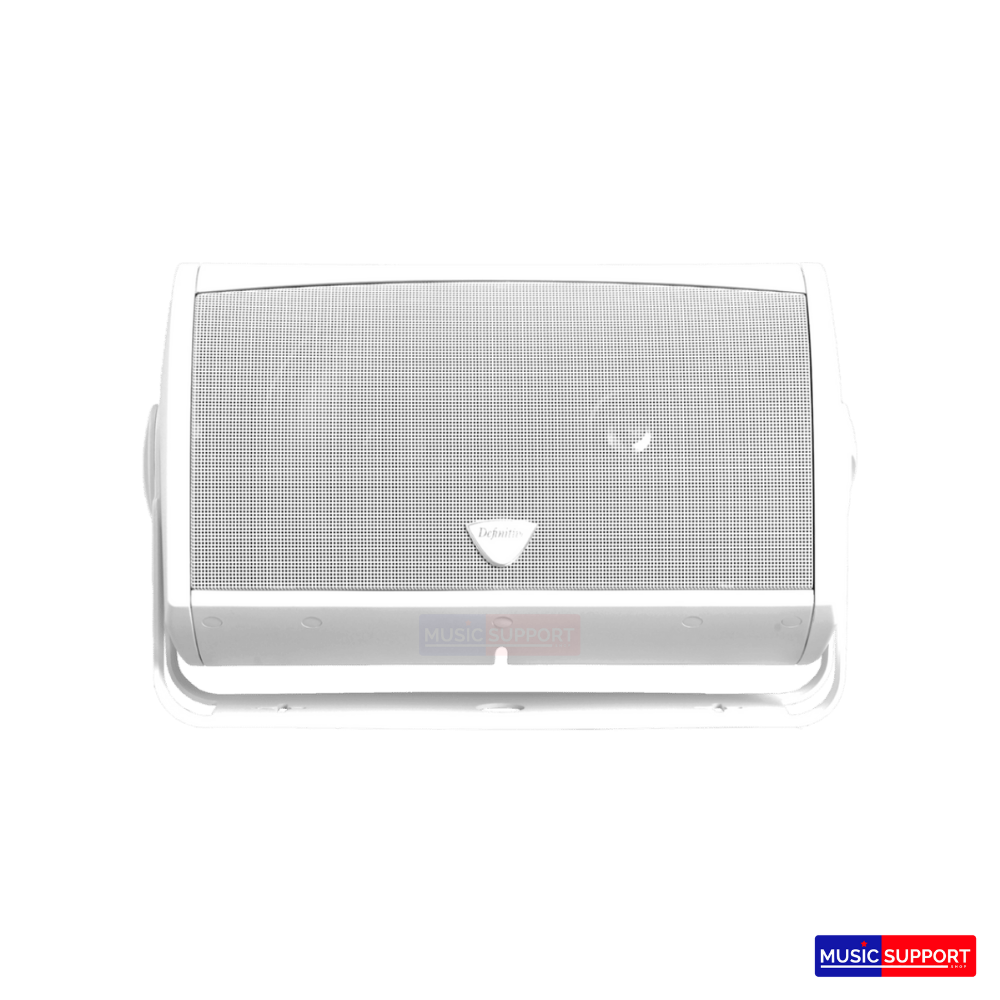

The AW 6500 comes in black or paintable white. Both make a statement with any outdoor décor.

OVERALL

Total Pieces1

ACCESSORIES

Included Accessories

(1) Wall Bracket with Thumb Screws

SHIPPING CARTONS

Carton 117.5" (44.45 cm) h x 11.5" (29.21 cm) w x 11.5" (29.21 cm) d - 10.42 lbs (4.73 kg)

ALL-WEATHER SPEAKER

Qty Included1

Orientation

Horizontal

Vertical

Height8.88" (22.56 cm)

Width14.44" (36.68 cm)

Depth9.25" (23.5 cm)

Weight9.2 lbs (4.17 kg)

Driver Enclosure TypePolyStone

Driver Complement

(1) 1" (2.54 cm) d (Round) Pure Aluminum Dome - Tweeter

(1) 6.5" (16.51 cm) d (Round) BDSS Bass - Mid/Woofer

(1) 5.5" (13.97 cm) h x 10" (25.4 cm) w (Oval) Pressure Driven - Bass Radiator

AUDIO QUALITY

Total Frequency Response40 Hz → 30,000 Hz

Nominal Impedance8 ohms

Sensitivity (1 watt @ 1 meter)92 dB

CROSSOVER

TypeA/V Receiver Crossover Setting

Peak Power Handling200 watts

A/V Receiver Crossover SettingsLarge (40 Hz)

INPUTS

Audio Inputs

Speaker Inputs(1) Pair of 5-Way Binding Posts - Gold Plated
