LD Systems MAUI5 Ultra Portable Column PA System with Mixer and Blutooth MAUI5

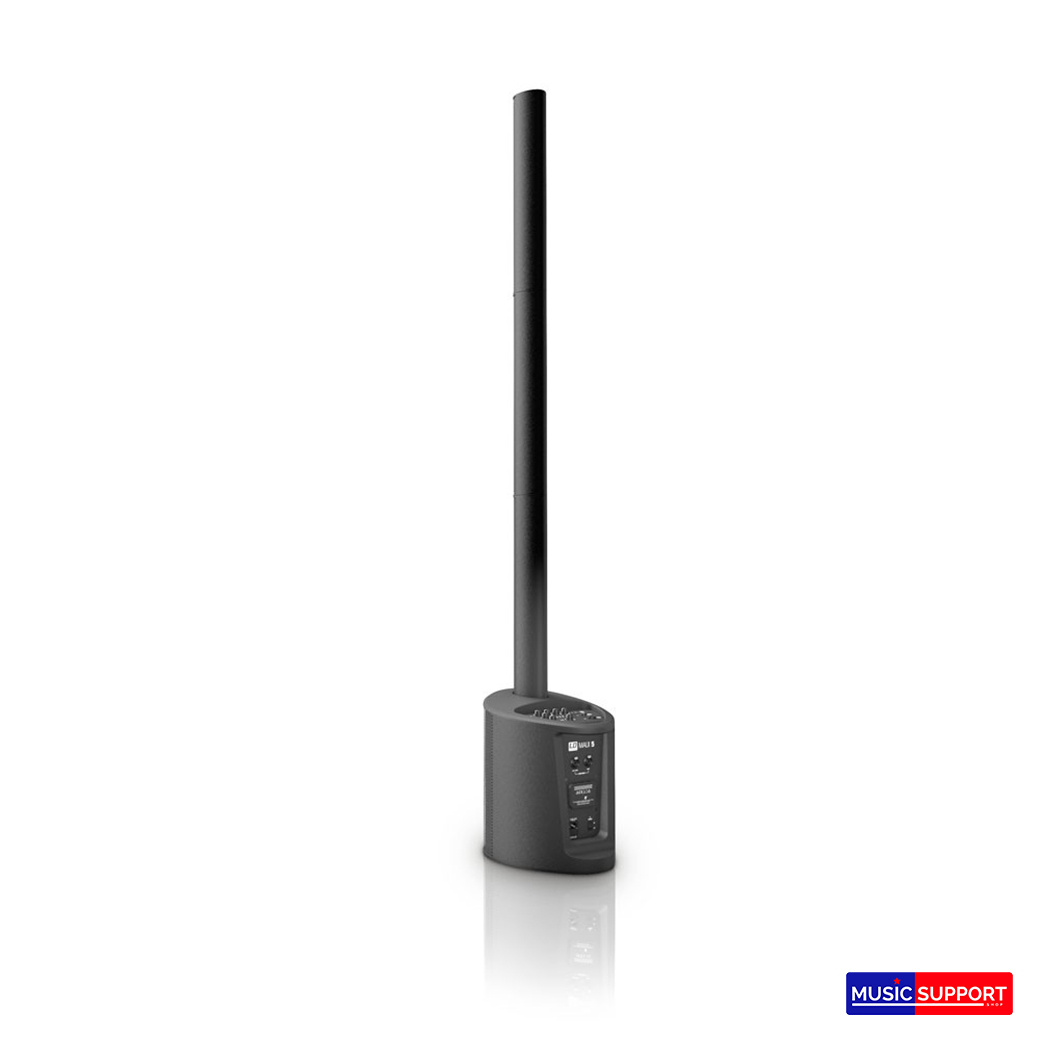

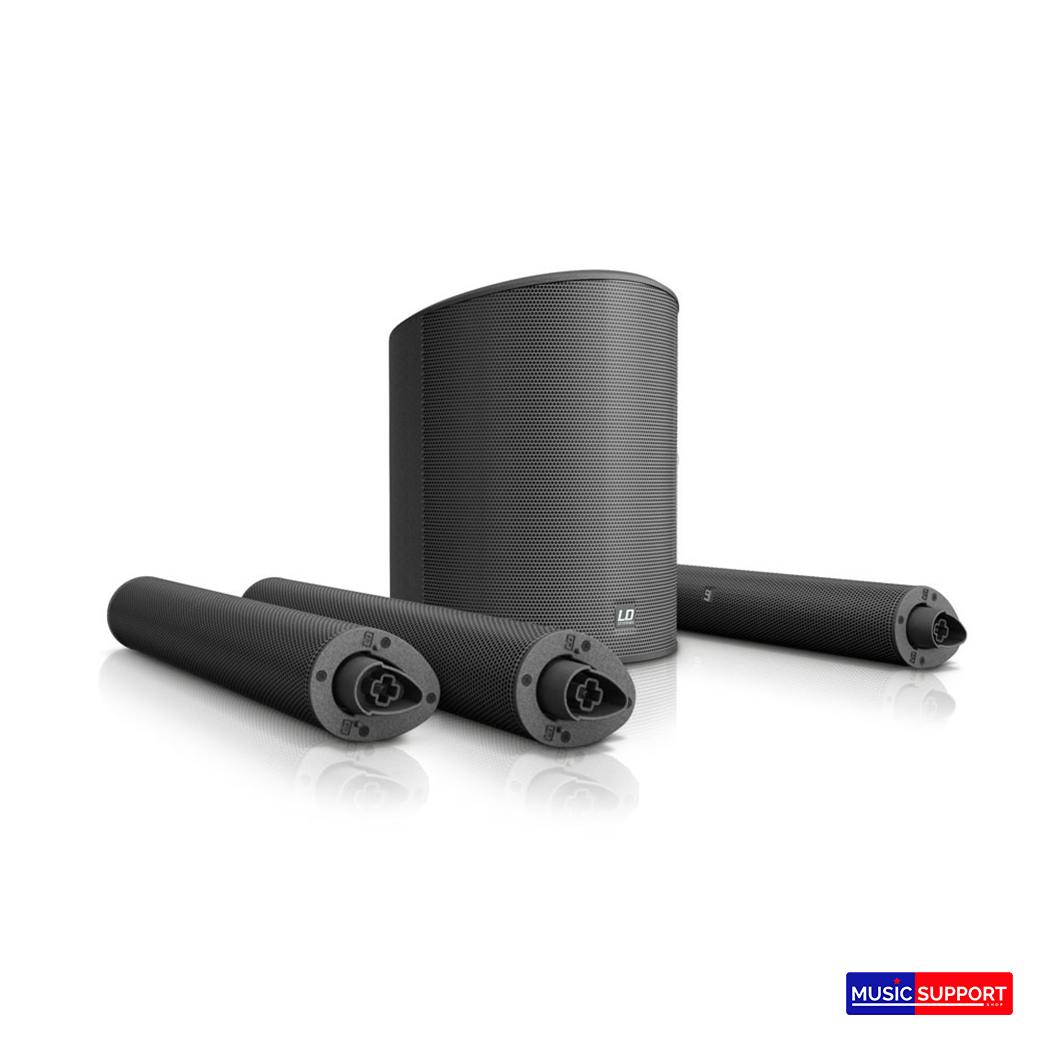

The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.

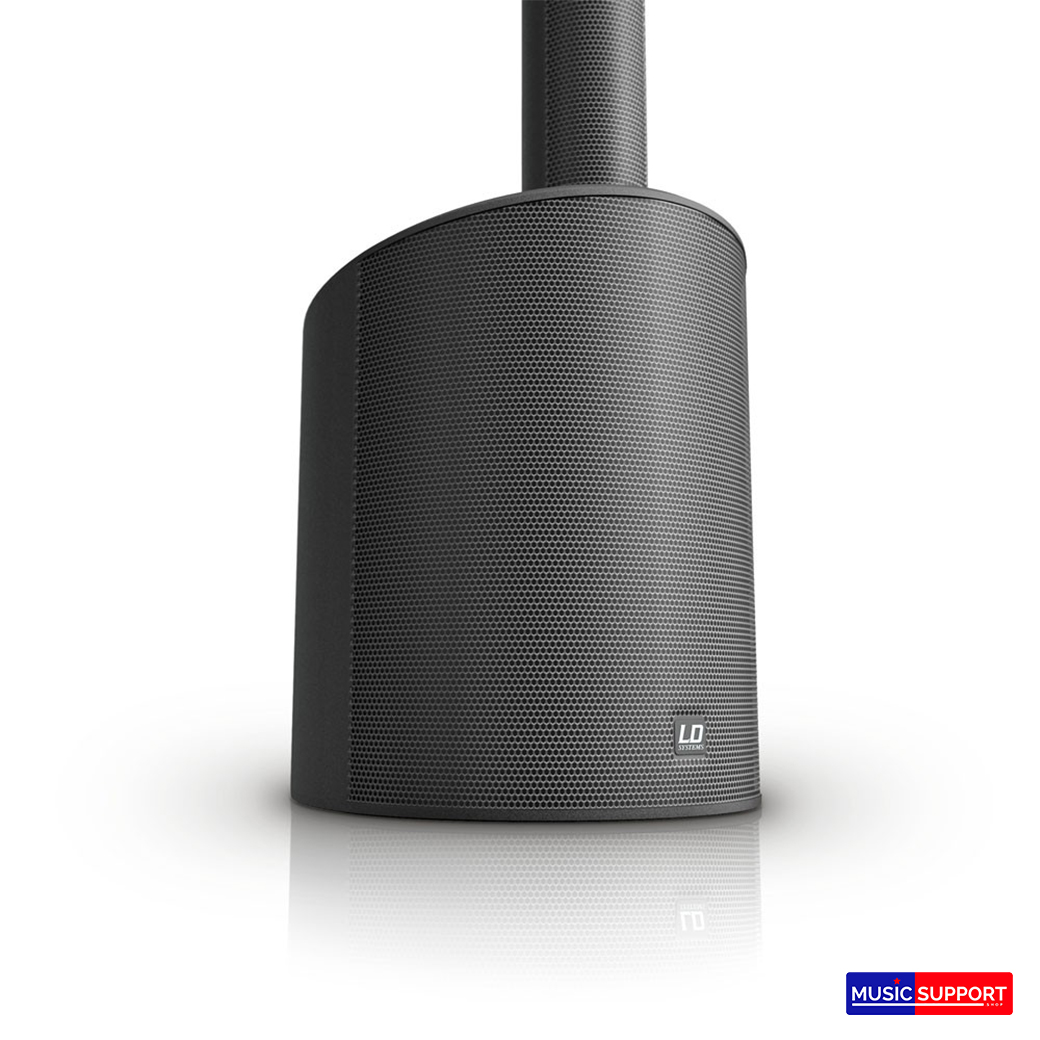

The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance. The MAUI 5 is also available in white (LDMAUI5W).

Maui Series

The active MAUI column systems by LD Systems offer an especially compact complete PA solution: they are very easy to transport, can be set up in seconds, and blend into any setting thanks to their unobtrusive appearance. The vertical array configuration, digital signal processing, and individualized amplification of the frequency bands by separate power amplifiers ensure an especially large dispersion angle and extremely homogeneous sound distribution in the audience area. With their impressive audio performance and simple handling, the LD MAUI PA systems are suitable for a surprisingly wide range of applications.

Features

• Compact, slim-line design
• 8'' Vented Subwoofer with Class D amplification
• Subwoofer includes 4-channel mixer and bluetooth connectivity
• XLR, 6.3 mm jack and 3.5 mm jack inputs
• Delivers 800 watts of peak power
• Maximum SPL of 120DB



  Specifications

  • Product Type: PA System
  • Type: Active
  • Colour: Black
  • Max. SPL (continuous): 114 dB
  • Max. SPL (peak): 120 dB
  • Frequency Response: 50 - 20000Hz
  • Dispersion (H x V): 120° x 20°
  • Overall Height: 1985mm
  • Weight: 11.3kg
  • Other Features: 4 channel mixer, DSP-based signal processing, Bluetooth

  Subwoofer Characteristics:



  • Low/mid driver dimensions: 8''
  • Low/mid driver dimensions (mm): 203.2mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Woofer voice coil: 2"
  • Woofer voice coil (mm): 50.8mm
  • Cabinet construction: Vented
  • Cabinet material: ABS plastic
  • Subwoofer width: 305mm
  • Subwoofer height: 405mm
  • Depth Subwoofer: 395mm

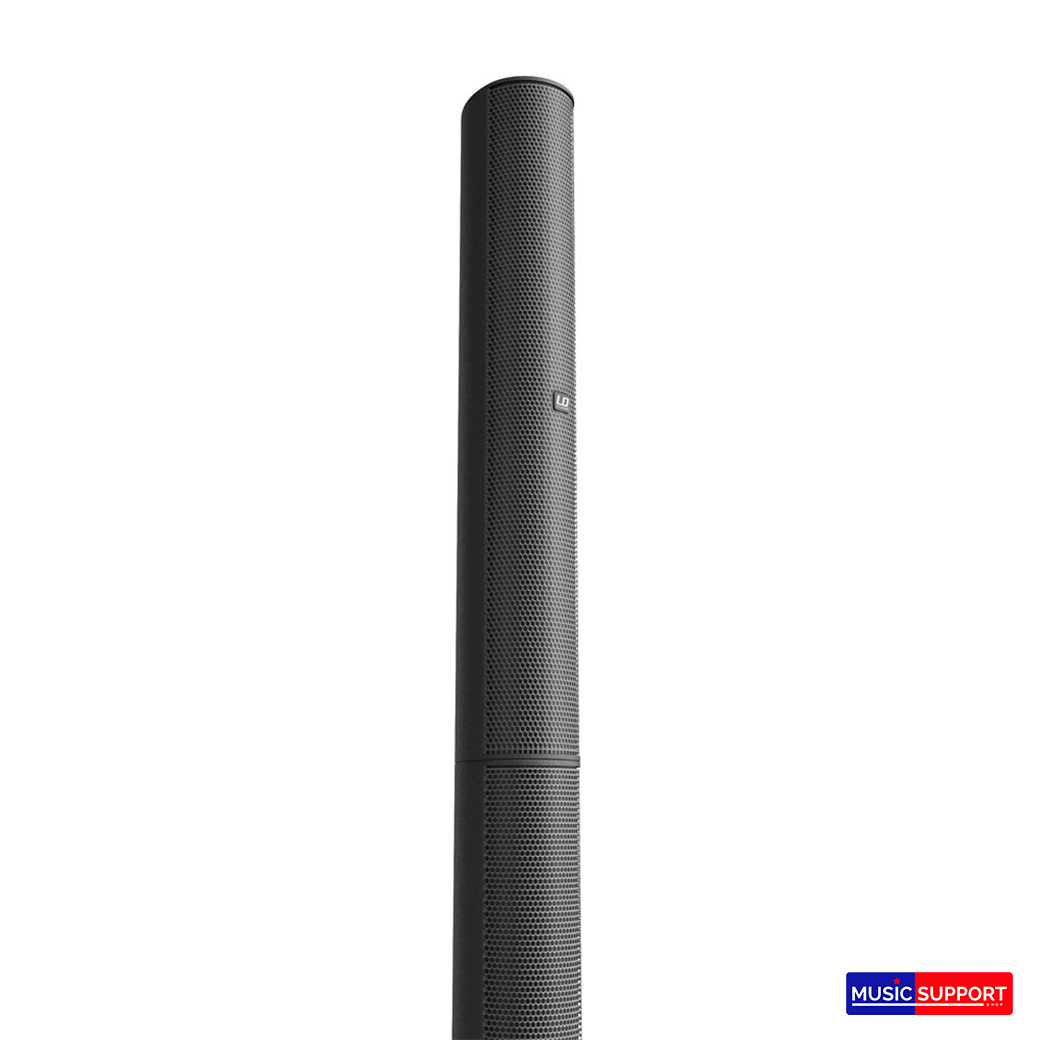

  Mid/Hi System

  • Midrange size: 4 x 3"
  • Midrange size: 4 x 76.2mm
  • Midrange Magnet: Neodymium
  • Midrange brand: Custom-Made
  • Midrange voice coil: 1"
  • Midrange voice coil: 25.4mm
  • Mid/Hi system impedance: 4Ohm(s)
  • Loudspeaker inputs: 1
  • Speaker input connections: Custom-made Multipin
  • Cabinet construction mid/high: Closed
  • Mid/Hi system cabinet material ABS plastic
  • Mid/Hi system width: 82mm
  • Mid/Hi system height: 535mm
  • Mid/Hi system depth: 105mm

  Amplifier Module (Integrated In Subwoofer)

  • Amplifier: Class D
  • Amplifier Output System (RMS): 200W
  • Amplifier Output System (Peak): 800W
  • Protection circuits: DSP-based multiband limiter, short circuit, thermal overload, over-current
  • Cooling: Convection

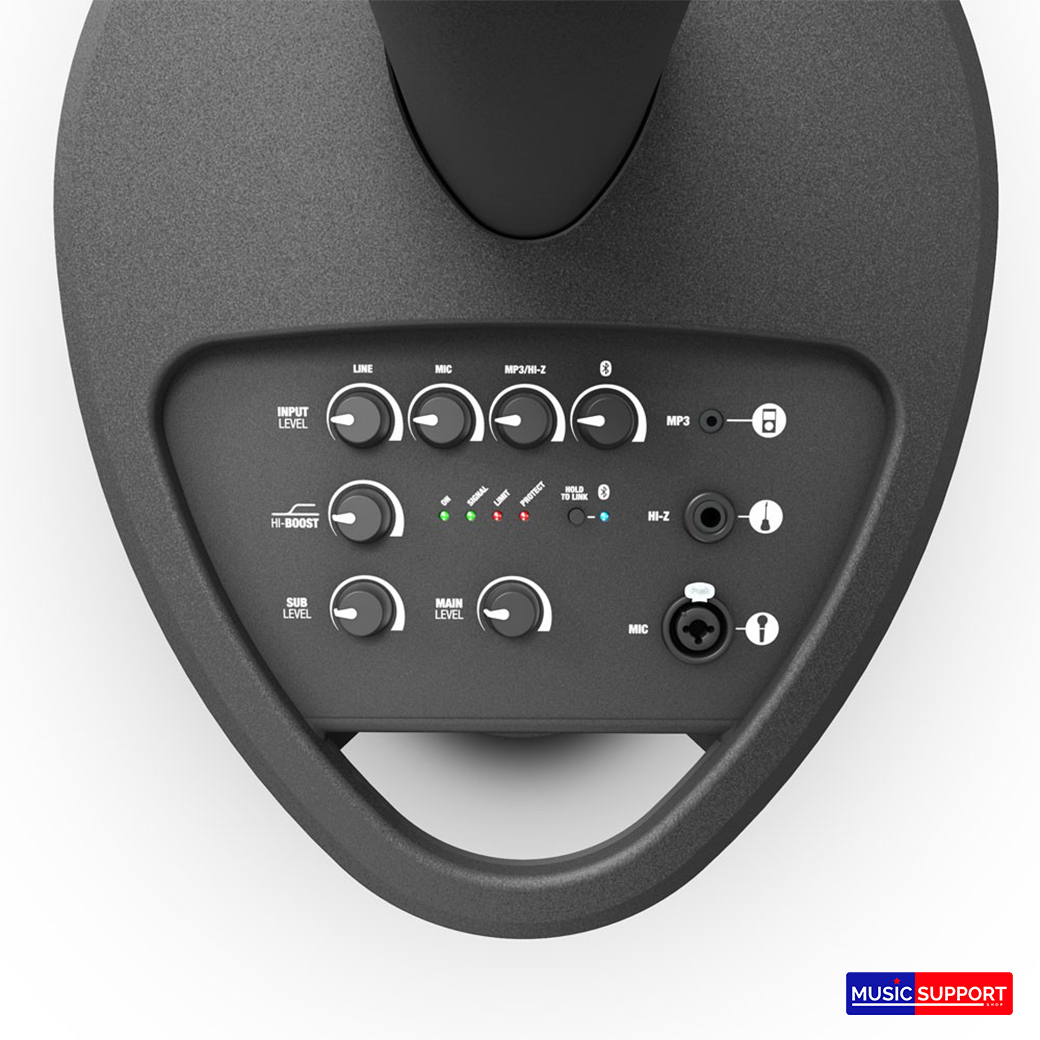

  • Controls: BT Pairing, Line Level, BT level, Main Level, MP3 / Hi-Z Level, sub level, Mic Level
  • Operating voltage: Switching Power Supply, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz

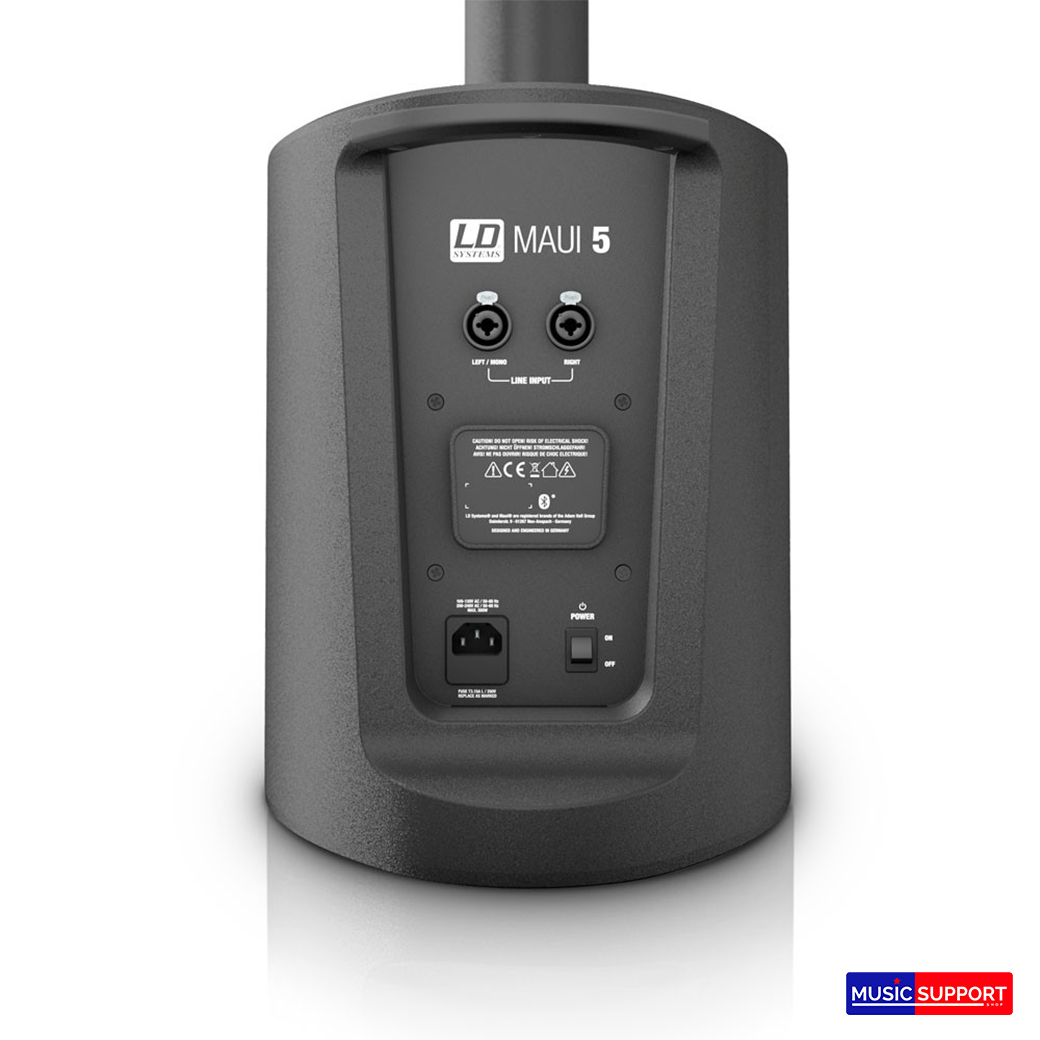

  • Line inputs: 2 x stereo
  • Line input connectors: XLR, 6.3 mm Jack
  • Mic inputs: 1, XLR, 6.3 mm Jack
  • MP3 inputs: 1
  • MP3 input connectors: 3.5 mm jack
  • Hi-Z inputs: 1
  • Hi-Z input connectors: 6.3mm Jack
  • Loudspeaker outputs: 1
  • Speaker output connections: Custom-made Multipin
